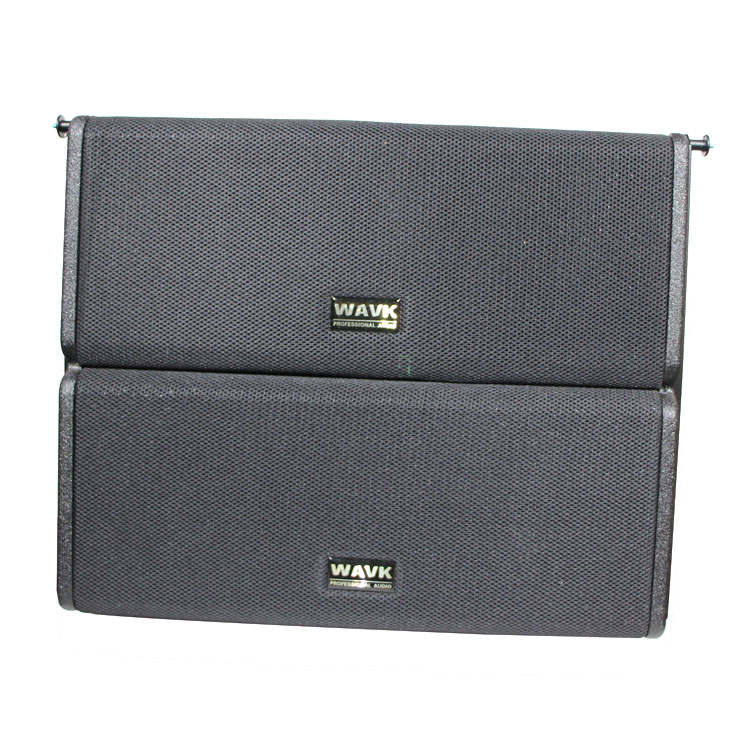

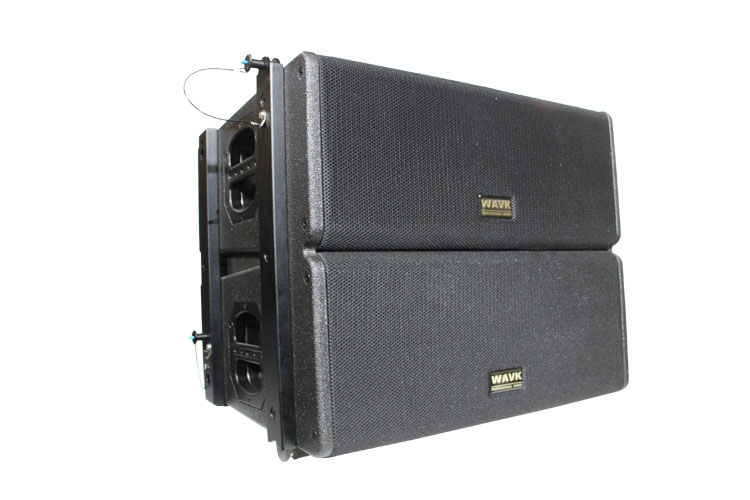

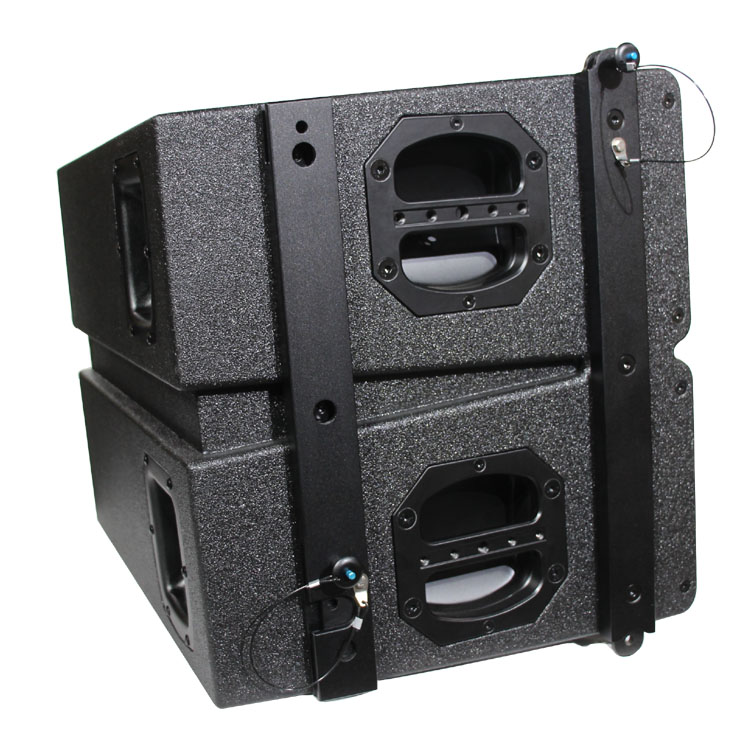

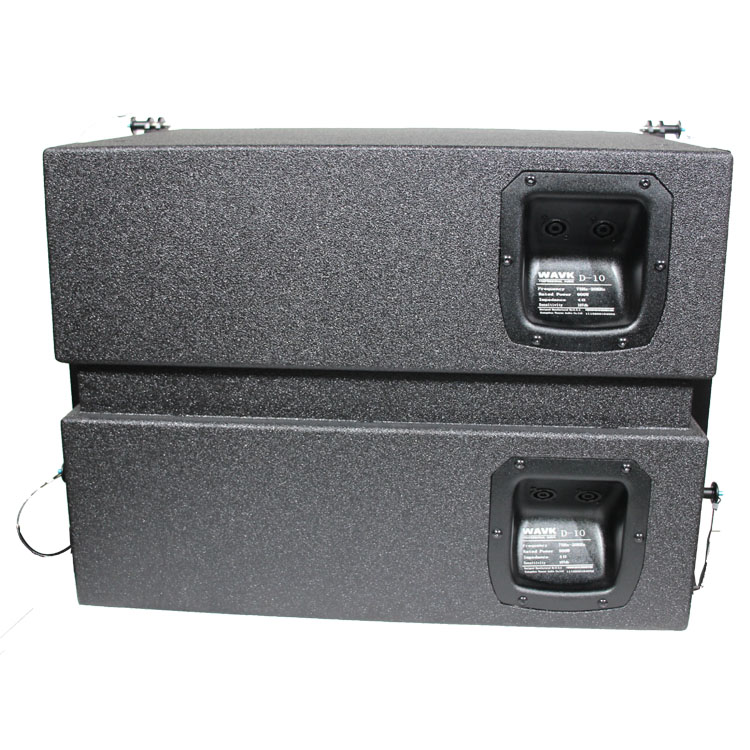

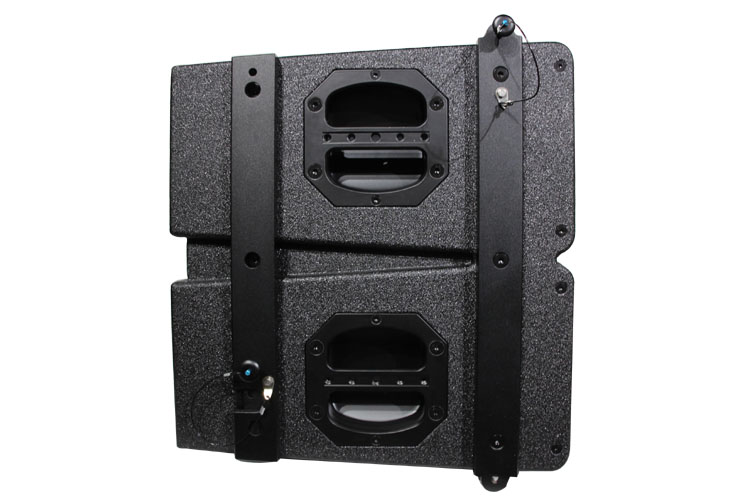

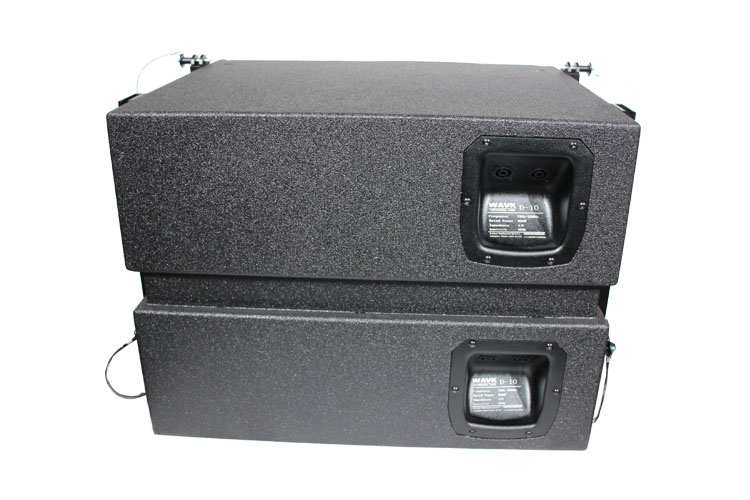

D10 Line array speakers professional power audio sound system

Model:KS-D10
Power handling:

800W  RMS/1200W PEAK

Drivers:LF 2*10" / HF 2*1.5"
Max SPL:140dB
Impedance:
Frequency:75Hz - 20KHz
Dispersion:120°H *8° V
Finish:Plywood case in black painting
Dimension(mm):W562* D430 * H464 MM
Weight: 42KG


D10 Line array speakers professional power audio sound system

◆ Dual frequency full frequency inverted speaker, with two types of internal and external frequency dividers available for purchase.

Two 10 inch mid bass speakers with a 3-inch voice coil.

Two compressed neodymium magnetic tweeter units with a 3-inch voice coil and a 1.5-inch throat.

◆ High power, suitable for general entertainment, meetings, and small-scale performances, as well as distributed sound reinforcement in sports venues.

◆ Horizontal coverage angle of 120 ° and vertical coverage angle of 8 ° are suitable for various occasions of sound reinforcement.

The sturdy honeycomb shaped steel mesh protects the horn from external impact.

Exclusive compression driver protection circuit.

The box is made of high-density plywood, and the hard outer coating can withstand various frictions and collisions.

◆ Acoustic shock absorbers improve safety and sound quality.

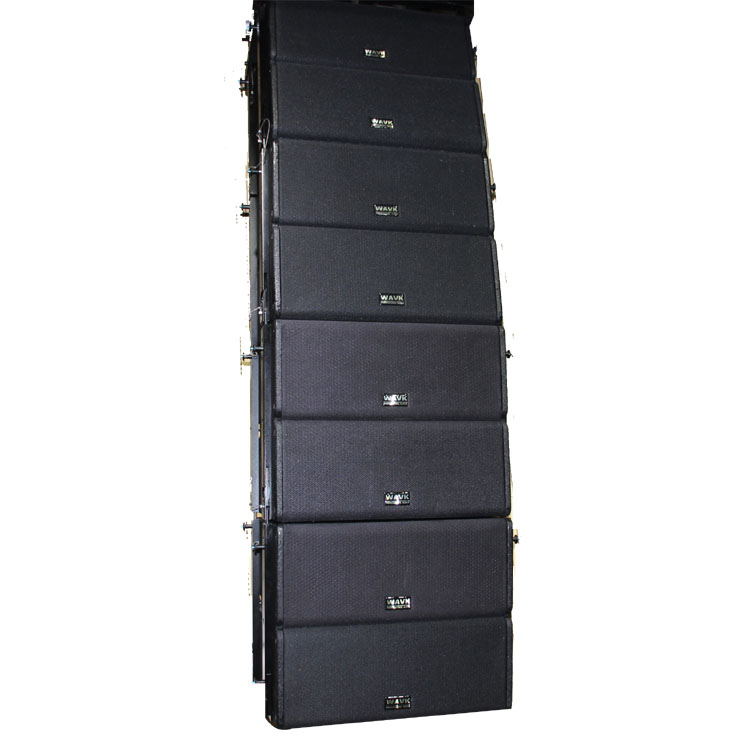

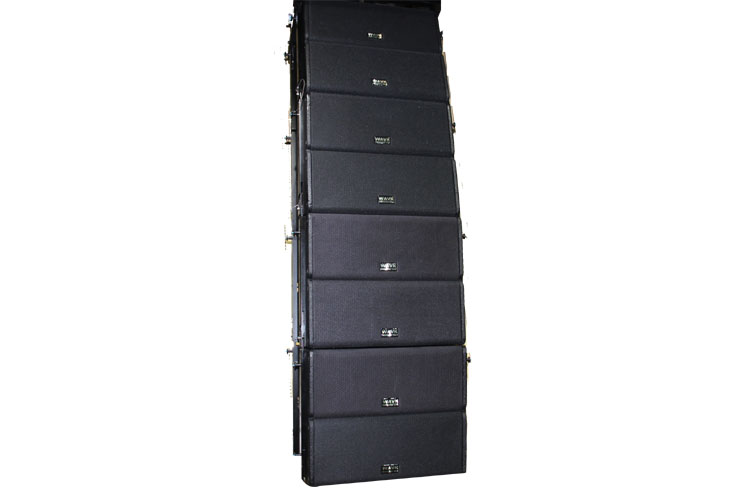

Unique appearance and linear array design make it easy to combine into a speaker array. It can be combined with T18B or T18E, or can be separately formed into a linear array form.

◆ Safe, convenient, and fast, with a balanced and natural tone.

◆ Can be used for main sound reinforcement in small and medium-sized systems and supplementary sound for large systems.
