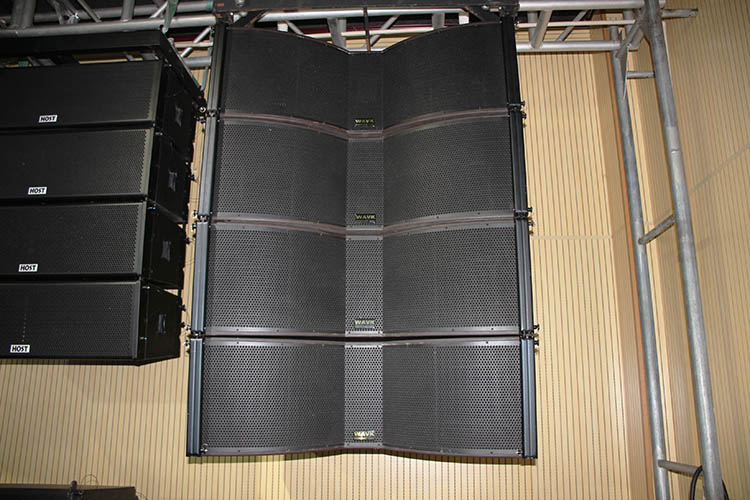

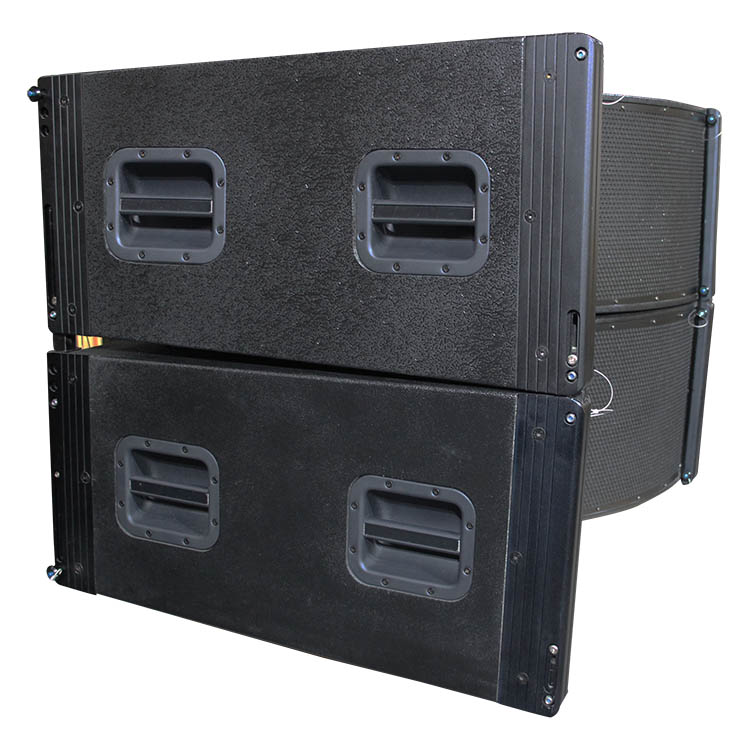

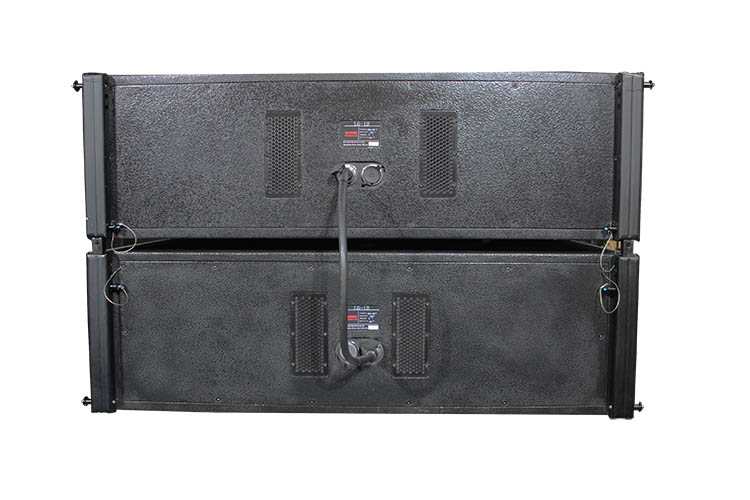

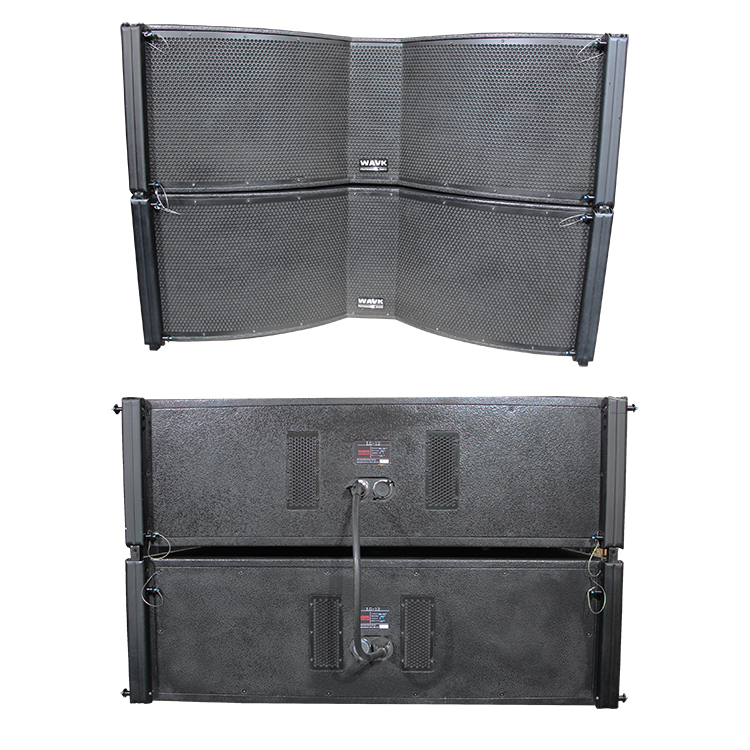

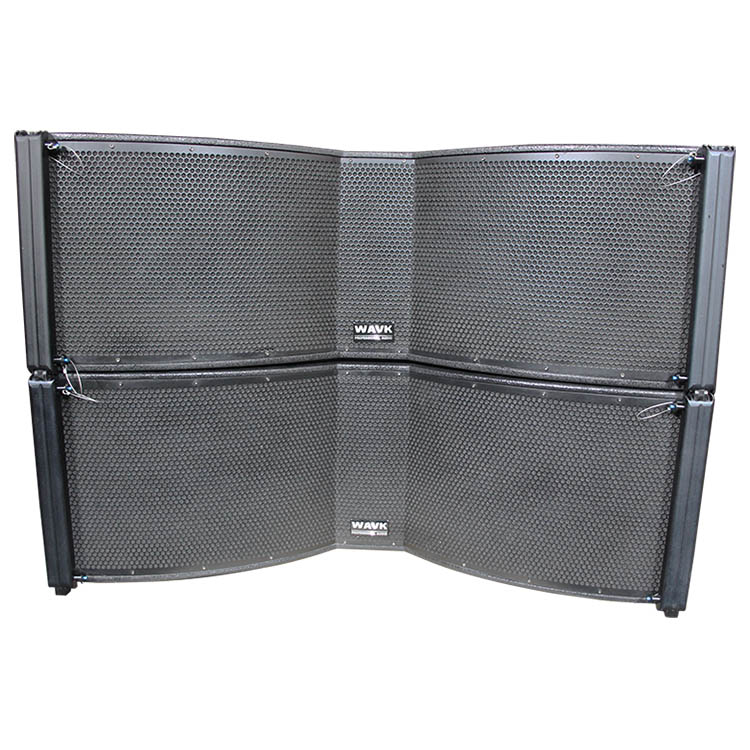

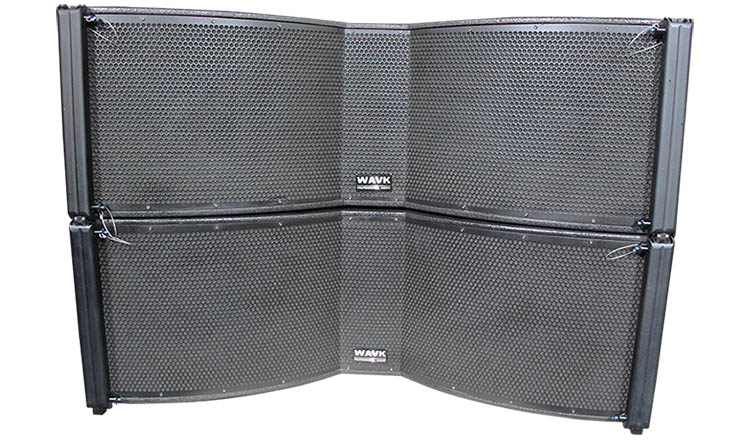

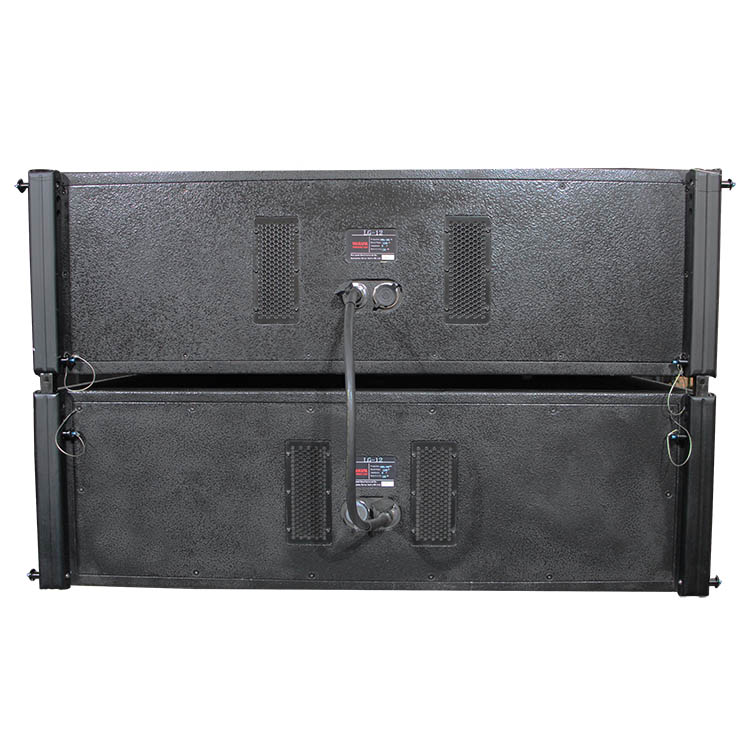

LG12 Professional 12" line array speaker for performance rental, concert

Model:

LG12

Power handling:

300/400/1200W  RMS/450/600/2400W PEAK

Drivers:

LF 2*12" / MF 4*6.5"/ HF 3*1.5"

Max SPL:

146dB

Impedance:

 LF 8Ω/ MF 8Ω/ HF 8Ω

Frequency:

60Hz - 20KHz

Dispersion:

120°H *8° V

Finish:

Plywood case in black painting

Cabinet Dimension(mm):

W1202* D798 * H417 MM

Weight:

96KG

LG12 Professional 12" line array speaker for performance rental, concert

Power handling:

300/400/1200W  RMS / 450/600/2400W PEAK

Drivers:

LF 2*12" / MF 4*6.5"/ HF 3*1.5"

Max SPL:

146dB

Impedance:

LF 8Ω/ MF 8Ω/ HF 8Ω

Frequency:

60Hz - 20KHz

Dispersion:

120°H *8° V

Finish:

Plywood case in black painting

Dimension(mm):

W1202* D798 * H417 MM

Weight:

96KG

◆ Triple frequency full frequency speaker design, with two types of internal and external frequency dividers available for purchase

Two 12 inch high-power mid bass speakers with a 4-inch voice coil, developed using the best international unit materials, are powerful and powerful

Three compressed tweeters with a 3-inch voice coil and a 1.5-inch throat, and four high-definition 6.5-inch mid-range speakers, developed using the best international unit materials, with crisp and delicate tones

◆ Patented waveguide technology and coupling technology can truly achieve a 3dB attenuation for every doubling of distance within 48 meters, with ultra strong power, loud pressure, high sensitivity, and explosive power, as well as an ultra long range (200 meters effective distance, 8+4 to meet the design of 20000 people). Coupled with an ultra bass speaker, it is suitable for indoor and outdoor large and medium-sized performance occasions and large sports venues. The larger the occasion, the more outstanding the performance

◆ Horizontal coverage of 120 °, strictly controlled within 8 degrees in the vertical direction, effectively controlling high-frequency acoustic interference

The sturdy honeycomb shaped steel mesh protects the horn from external impact, while also forming an overall large angle, effectively improving the delivery distance, high-precision projection, and great dynamic capacity

The box is made of high-density birch plywood, and the hard outer coating can withstand various frictions and collisions

◆ Acoustic shock absorbers improve safety and sound quality

Unique appearance design, novel hanging parts, convenient linear array for assembly, safe, convenient, and fast installation

◆ The overall sound is delicate, balanced, and natural.
